Kaishan Mining Piston Compressor

China Kaishan Mining Piston Compressor supplier
Kaishan Mining Piston Compressor supplier Kaishan Mining Piston Compressor supplier Kaishan Mining Piston Compressor supplier Kaishan Mining Piston Compressor supplier Kaishan Mining Piston Compressor supplier

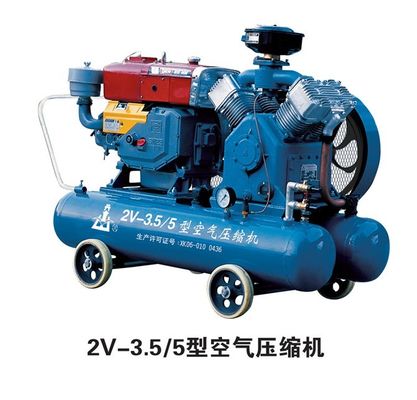

Large Image :  Kaishan Mining Piston Compressor

Product Details:

Place of Origin: China
Brand Name: Jinquan
Certification: ISO9001:2008
Model Number: W-3.2/7 2V-3.5/5 2V-4/5 W-1.8/5 W-3/5 W-3.2/7 KB-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: $800
Packaging Details: Ply-wooden cases or Iron bundles
Delivery Time: Within 15 days upon receipt of your 30% deposit
Payment Terms: T/T, Western Union, Paypal, L/C At Sight
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Other Names: Mining Piston Compressor,Piston Compressor,Portable Air Compressor,Air Compressor Condition: New
After-sales Service Provided: Yes Colour: Blue, Red Etc.

Zhejiang Kaishan Group W-3.2/7 Mining Piston Air Compressor:
Our factory supply many kinds of air compressor! Diesel, Motor, Piston, Screw type etc.
1 Cylinder diameter(mm)/Cylinder No.: 125/3
2 Stroke (mm): 100
3 Rated pressure(Mpa): 0.7
4 Rated speed (r/min): 960
5 capacity ( m3/min): 3.2
6 Volume of tank (L): 230
7 Displacing valve: Sweden imported thick stainless steel
8 Cylinder structure: Integral suppressed aluminum alloy
9 Lubrication method: Oil needle splash
10 Cooling method: Air cooled
11 Diesel motor: S1125, 20KW 25HP
12 Dimension(L W H) (mm) 196/90/125
13 N. W (kg): 550
14: G. W (kg): 650
15 Carton size (mm): 200/95/130


Model  W-3.2/7
Capacity (m3/min) 3.2
Exhaust pressure (Mpa) 0.7
Cylinder (Dia*Qty) 125*3
Diesel Engine/Motor S1125 Diesel (25 HorsePower)
Volume of gas storage tank (L) 230
Diemension (L*W*H) mm 1920*960*1350
Tyres 4
Weight (kg) 550
