Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig

China Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig supplier
Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig supplier Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig supplier Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig supplier Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig supplier Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig supplier

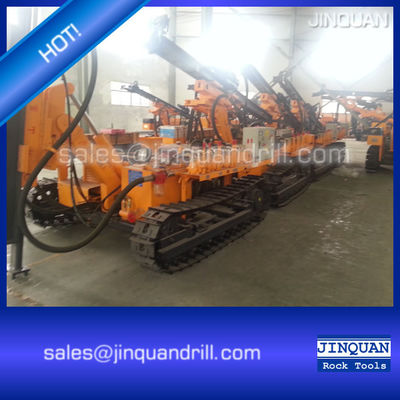

Large Image :  Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig

Product Details:

Place of Origin: China
Brand Name: Jinquan
Certification: ISO9001:2008
Model Number: KY100/KG910B KY125/KG920A(B) KY130/KG930B KY140 (KG940)

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: $20000
Packaging Details: Ply-wooden cases or Iron bundles
Delivery Time: Within 15 days upon receipt of your 30% deposit
Payment Terms: T/T, Western Union, Paypal, L/C At Sight
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Other Names: DTH Drilling Rig,Mini Drill Rig,Portable Drilling Rig,Mobile Drilling Rig,Drill Rig Drilling Hole Diameter (mm): D105-140
Drilling Depth (m): 25 Working Pressure (Mpa): 1.0-2.4
Air Consumption (m3/min): 9-18 Rock Hardness: F=6-20
DTH Drill Rod Size (mm): 76×3000 Dimension (mm): 5600*2340*2550mm
Weight (kg): 6000

KY130/KG930B mining blasting hole drilling crawler hydaulic drilling rig:

KY crawler DTH drill rig series are specially designed drill equipment, mainly include KY100, KY100J, KY120, KY125, KY130, KY140A, KY8S etc., which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption, compressed air is used to operate crawler drill hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling and etc.

1.crawler walking
2.high air pressure
3.strong power


Rigidity rock

F=6-20

Diameter of hole

105-140mm

Optium drilling depth

25m

Working pressure

10-24bar

Air consumption

9-18m³/min

Rotation speed

90-120rpm

Torque

2800N.M

Lift power

18KN

Dimension(KY100)

5600*2340*2550mm

weight

6000 KG

Drive system

498BG-8Engine

Standard Components ( option)

1.hammer

DHD340/COP44

2.pipe

Φ76*3000mm

3.bit

Φ105,Φ115,Φ120,Φ125,Φ140

4.air hose

Φ38*2P*20

Recommended compressor

LGCY-15/13(Φ105-Φ115), LGCY-18/17(Φ115), LGCY-19.5/19(Φ125)

Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig

Kaishan Group KY130/KG930B Crawler Surface Ore Mining Blasting Hole DTH Drilling Rig
